Product details

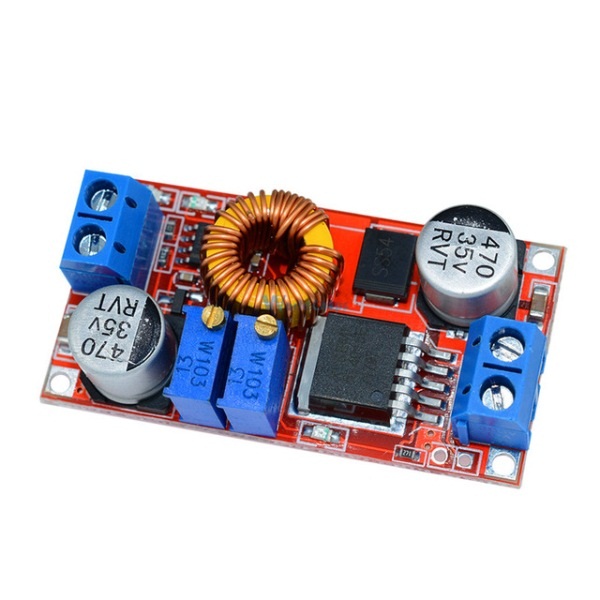

This XL4015 ADJ Lithium Battery Charger Converter Module DC-DC 0.8-30V To 5-32V 5A is linear module has constant voltage and constant current function (CC CV). and it has a good performance. When you use it as a charger. this module use good chip as core and it is stable. also its ripple is low to 50mV.
- Size: 51 * 26.3 * 14 (L * W * H) (mm)
- Operating Temperature: -40 ° to +85 °
- Voltage Regulation: ± 2.5%
- Load Regulation: ± 0.5%
- Output ripple: 50mV (max) 20M bandwidth
- Switching frequency: 300KHz
- Conversion efficiency: 95% (the highest)
- Output current: adjustable maximum 5A
- Output voltage: 0.8V-30V
- Input voltage: 5V-32V
- Rectification: non-synchronous rectification
- Module Properties: non-isolated constant current and voltage module.
Package Included:
1 * XL4015 ADJ Lithium Battery Charger Converter Module DC-DC 0.8-30V To 5-32V 5A
