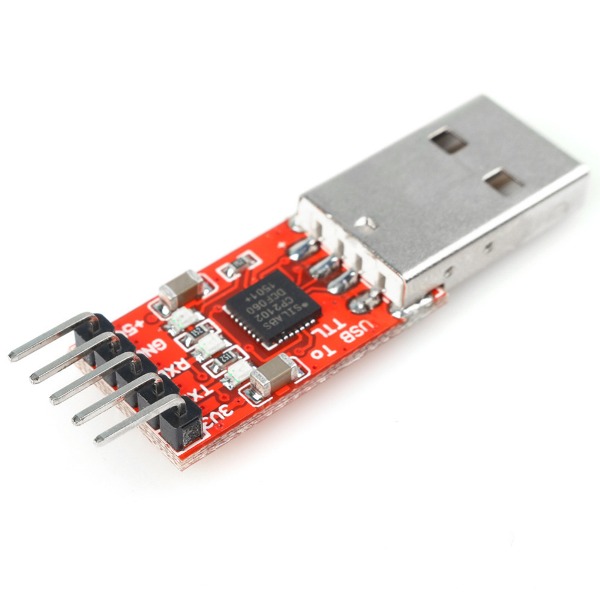

USB to TTL CP2102 Converter-5 Pin

0 Reviews
4 in stock

177.00

Buy now

Product details

USB to TTL CP2102 converter-5 Pin  from SiLabs is a single chip USB to UART bridge IC. It requires minimal external components. CP2102 can be used to migrate legacy serial port based devices to USB.

Pinouts:-
  • TX = Connect to Transmit Pin(TXD) of Micro controller. This pin is RX pin of CP2102 on board.
  • RX = Connect to Receive Pin(RXD) of Micro controller. This pin is TX pin of CP2102 on board.
  • GND = Should be common to microcontroller ground.
  • 3V3 = Optional output to power external circuit upto 50mA.
  • 5V = Optional output to power external circuit upto 100mA
  • RST = Normally Unconnected. Reset Pin for CP2102. Initiate a system reset by driving this pin low for atleast 15 µs.
Features:
  • Stable and reliable chipset CP2102.
  • USB specification 2.0 compliant with full-speed 12Mbps.
  • Standard USB type A male and TTL 6pin connector.
  • 5pins for 3.3V,  TXD, RXD, GND & 5V.
  • Baud rates: 300 bps to 1.5 Mbps
  • Byte receive buffer; 640 byte transmit buffer.
  • Hardware or X-On/X-Off handshaking supported.
  • Event character support Line break transmission.
  • USB suspend states supported via SUSPEND pins.
  • Temperature Range: -40 to +85.
  • Size: 42mm X 15mm.
Package Includes:

1 x USB to TTL CP2102 Converter-5 Pin
