Capacitive Touch Switch Module-8 Way TTP226

0 Reviews
10 in stock

118.00

Buy now

Product details

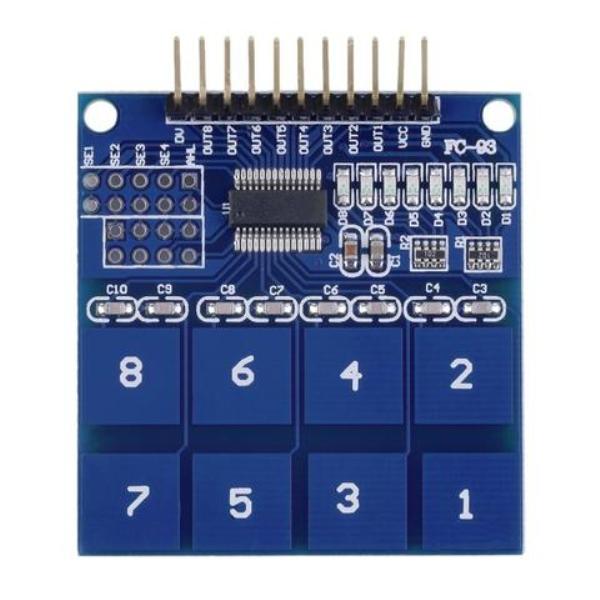

Capacitive Touch Switch Module-8 Way TTP226.This sensor / Switch Module is based on a touch-sensing IC enabling capacitive touch switch mode.

In the normal state, the module output is low, low power consumption.

When a finger touches the corresponding position, the module output high, if not touched for 12 seconds, switch to low-power mode

  • Low power consumption
  • Power supply for 2.4 ~ 5.5V DC
  • Can replace the traditional touch of a button
  • Fixture screw-holes for easy positioning & installation
  • Typical high Voh = 0.8VCC
  • Typical Vol = 0.3VCC
  • Output Sink Current: 8mA
  • Output pin pull-up current: 4mA
  • Response time (Low Power mode): 220mS
  • Response time: 60mS
  • Onboard 8-level status indicator
  • PCB board size: 47.5 mm x 46 mm
