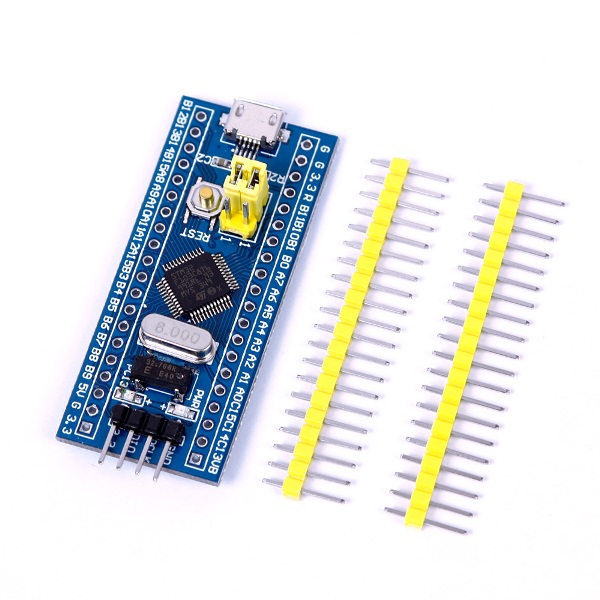

STM32F103C8T6 Minimum System Microcomputer STM32 ARM Core Board

This is STM32F103C8T6 Minimum System Board Microcomputer STM32 ARM Core Board. This board is low cost Minimum System Development Board for ARM Microcontroller STM32F103C8T6. Board is suitable for learners that want to learn STM32 microcontroller with ARM Cortex-M3 32-bit core.

Specification :

• 100% Brand new and high quality STM32 Board
• Model: STM32F103C8T6.
• Core: ARM 32 Cortex-M3 CPU.
• Debug mode: SWD.
• 72MHz work frequency.
• 64K flash memory, 20K SRAM.
• 2.0-3.6V power, I/O.
• Reset(POR/PDR).
• 4-16MHz crystal.
• On-board Mini USB interface, you can give the board power supply and USB communication.
• Size:53.34mm x 22.86mm.
