SR04 Ultrasonic Sensor – Range Finder Module – 10 PCs.

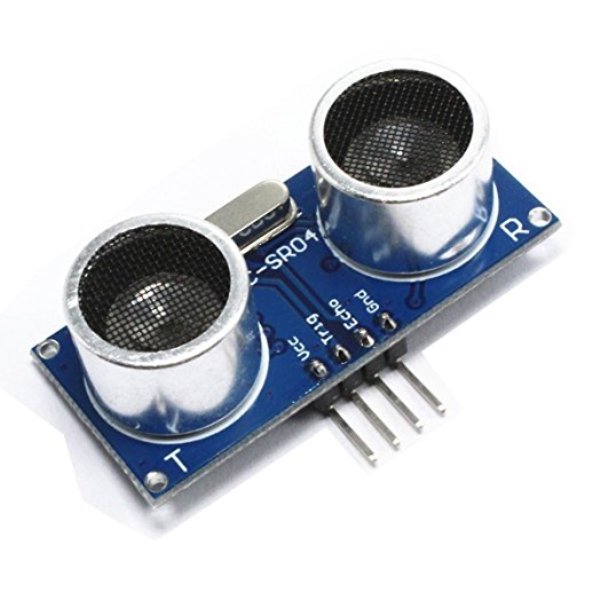

SR04 Ultrasonic Sensor – Range Finder Module  provides range from very short (2 Centimeters) to long-range (5 Meters) for applications in detection and ranging. The sensor provides precise and stable non-contact distance measurements from about 2 cm to 5 meters with very high accuracy.

The ultrasonic sensor SR04  can easily be interfaced to microcontrollers where the triggering and measurement can be done using two I/O pin. The sensor transmits an ultrasonic wave and produces an output pulse that corresponds to the time required for the burst echo to return to the sensor. By measuring the echo pulse width, the distance to target can easily be calculated.

This UltraSonic Distance Sensor is perfect for any number of applications that require you to perform measurements between moving or stationary objects

Wiring

• +5V(positive)
• Trig(control)
• Echo(receive)
• GND(negative)

Features :

1. Measures the distance within a wide range of 2 cm to 400 cm
2. Stable performance
3. Accurate distance measurement
4. High-density
5. Small blind distance
