A Solid State Relay SSR acts like a mechanical relay. SSR allows you to control high-voltage AC loads from lower voltage DC control circuitry. Solid State Relay SSR, have several advantages over mechanical relays. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays.

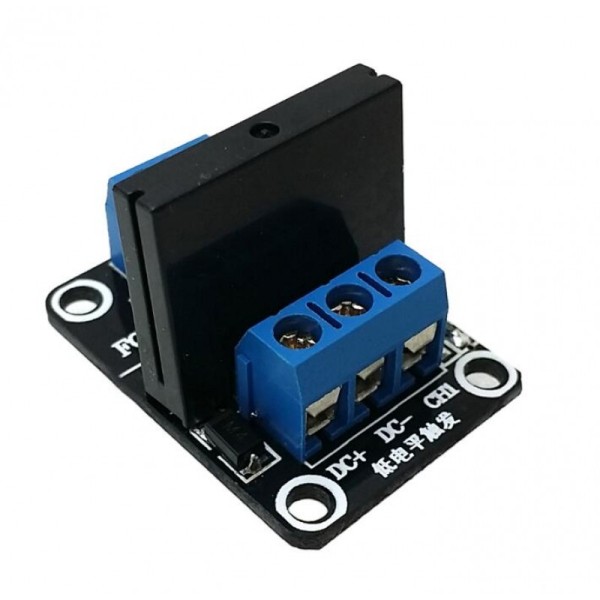

- 5V 240V solid state relay 2A output with resistance type fuse 240V 2A.
- Size 25 34 25 (length width height) net weight 13g
- The input power supply 5V DC (160MA)
- The input conrol signal voltage (the state of the 02.5V low level relay OFF) (the state of the 3 5V high level relay ON)
- The blue terminal is connected to the line of control more convenient. Module interface Input part DC connect the power supply positive (press the relay voltage power supply) DC the cathode of a power supply CH relay module signal trigger end (high level trigger effective) Electrical parameters The static current voltage version of the working current of trigger voltage trigger current 5V 0mA 12. 5mA 3. 3 5V 2mA
- 1-Channel Solid-State Relay
- Rated output load: 100V ~ 240V AC (50Hz/ 60Hz) 2A
- Rated input voltage: 5V
- Triggered at Low level
- LED showing Solid-State Relay status
