Product details

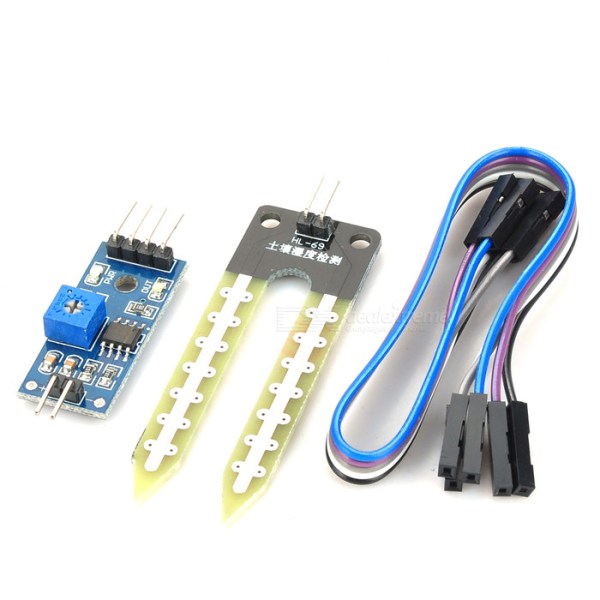

| Soil moisture sensor module is most sensitive to the ambient humidity is generally used to detect the moisture content of the soil; Module in the soil humidity less than a set threshold value when the DO port output high, when the when soil humidity exceeds the threshold value is set, the module D0 output low; Small plates digital outputs D0 can be directly connected with the microcontroller, microcontroller to detect high and low, and thus to detect soil moisture; Small plates digital output DO shop relay module can directly drive the buzzer module, and which can form a soil moisture alarm equipment; Small plates analog output AO and AD module connected through the AD converter, you can get more accurate values of soil moisture |
- Operating voltage: 3.3V~5V
- Dual output mode,analog output more accurate
- A fixed bolt hole for easy installation
- With power indicator (red) and digital switching output indicator (green)
- Having LM393 comparator chip, stable
- Panel PCB Dimension: Approx.3cm x 1.5cm
- Soil Probe Dimension: Approx. 6cm x 3cm
- Cable Length: Approx.21cm
Interface Description(4-wire):
- VCC: 3.3V-5V
- GND: GND
- DO: digital output interface(0 and 1)
- AO: analog output interface
Package Includes :
1 x Soil Moisture Sensor module
