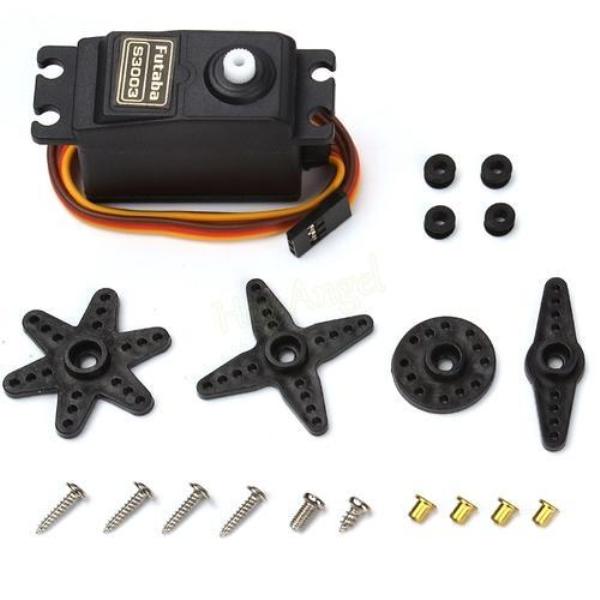

Futaba S3003 Servo Motor-180 Degree

Futaba S3003 Servo Motor-180 Degree

• Control System: +Pulse Width Control 1520 usec Neutral
• Required Pulse: 3-5 Volt Peak to Peak Square Wave
• Operating Voltage: 4.8-6.0 Volts
• Operating Temperature Range: -20 to +60 Degree C
• Operating Speed (4.8V): 0.23sec/60 degrees at no load
• Operating Speed (6.0V): 0.19sec/60 degrees at no load
• Stall Torque (4.8V): 44 oz/in. (3.2kg.cm)
• Stall Torque (6.0V): 56.8 oz/in. (4.1kg.cm)
• Operating Angle: 45 Deg. one side pulse traveling 400 uses
• Continuous Rotation Modifiable: Yes
• Direction: Counter Clockwise/Pulse Traveling 1520-1900 usec
• Current Drain (4.8V): 7.2mA/idle
• Current Drain (6.0V): 8mA/idle
• Motor Type: 3 Pole Ferrite
• Potentiometer Drive: Indirect Drive
• Bearing Type: Plastic Bearing
• Gear Type: All Nylon Gears
• Connector Wire Length: 12″
• Dimensions: 1.6″ x 0.8″x 1.4″ (41 x 20 x 36mm)
