Product details

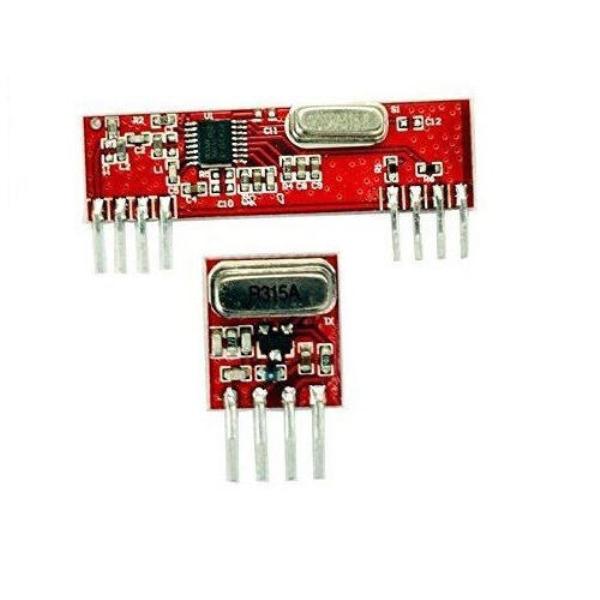

The RF Transmitter And Receiver Pair 434MHz is an ASK Hybrid receiver module. It is a effective low cost solution for using 433 / 434 MHz. The Transmitter is an ASK hybrid transmitter module. It is designed by the saw resonator, with an effective low cost, small size and simple to use for designing. Low Power Consumption.Easy For Application.
Range in open space (Standard Conditions) : 500 Meters (with Antenna) / 100-200 Meters (without Antenna)
- RF ASK Transmitter
- Frequency Range : 433.92 MHz
- Supply Voltage : 3V ~ 12V
- OutPut Power : 4 ~ 12 dBm
- Standard Operating Voltage : 5V
- RF ASK Receiver
- Receiver Frequency : 433.92 MHz
- Typical Sensitivity : 105 dBm
- Supply Voltage : 3V ~ 12V
- Supply Current : 3.5 mA
- Standard Operating Voltage : 5V
Applications
- Remote Controls
- Automation System
- Wireless Security System
- Sensor Reporting
- Car Security System
- Remote Keyless Entry
- Supports All Wireless Applications using 8051/AVR/PIC/ARM Microcontrollers (Using HT12E – HT12D Pair)
Package Includes:
- 1 x RF Transmitter And Receiver Pair 434MHz
