Product details

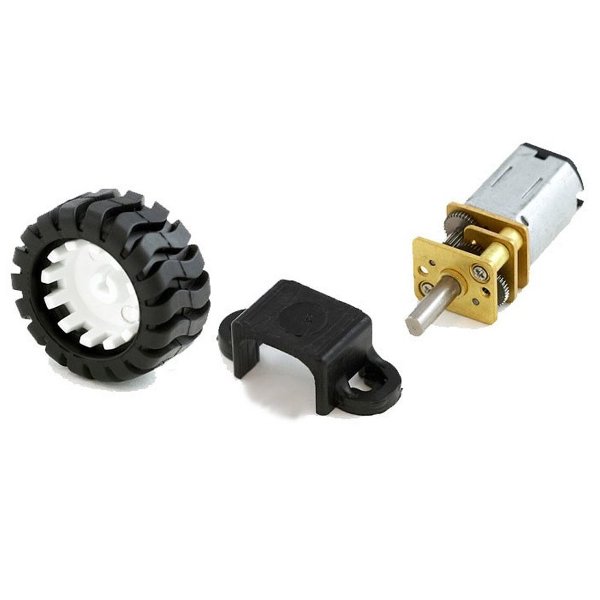

This Micro Metal gear DC Motor Kit includes high quality metal gear with matched Pololu wheel 42x19mm and a mounting base bracket specifically designed to securely mount the gear motor.
The motor has a long (0.365″ or 9.27 mm), D-shaped metal output shaft that matches the Pololu wheel 42x19mm.
The brass face plate has two mounting holes threaded for M1.6 screws (1.6 mm diameter, 0.35 mm thread pitch)
Features
- Gear ratio: 100:1
- rpm @ 6V: 120
- Rated current: 30mA @ 6V
- Stall current @ 6V: 420mA
- Rated torque @ 6V: 150 g.cm
- Stall torque @ 6V: 540 g.cm
