The LIPO Battery Charger Module TP4056 is a complete constant-current/constant-voltage linear charger for single cell lithium-ion batteries. Its SOP package and low external component count make the TP4056 ideally suited for portable applications. Furthermore, the TP4056 can work within USB and wall adapter.
No blocking diode is required due to the internal PMOSFET architecture and has prevented to negative Charge Current Circuit. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V, and the charge current can be programmed externally with a single resistor. The TP4056 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached.
TP4056 other features include a current monitor, under voltage lockout, automatic recharge and two status pin to indicate charge termination and the presence of an input voltage.
- Under Voltage Cut off / Deep Drain Protection
- Over Current Protection
- Adjustable Current Limit through R-Prog
- Over-voltage charging protection
- Usb Micro Connector (with more commonly available usb cables)
- LED Status Indicator for Charging / Full charge status monitoring
- Module Name: Rechargeable lithium battery module
- Method: linear charge 1%
- Charging current: 1A Adjustable (Through 1.2k R3 RPROG Resistor)
- Charge Accuracy: 1.5%
- Input voltage: 4.5V-5.5V
- Full charge voltage: 4.2V
- Over discharge / Deep Drain protection voltage: 2.5V
- Over-current protection: 3A
- Charging input interface: Micro USB
- Working temperature: -10 Degree to +85 Degree
- Polarity Reversal: Not Allowed
Package Includes:

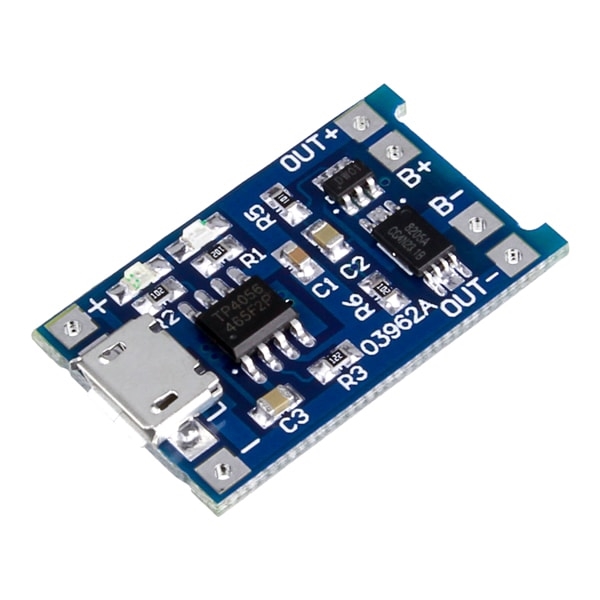

- 1 x LIPO Battery Charger Module With Protection circuit TP4056-1A Micro USB
