Product details

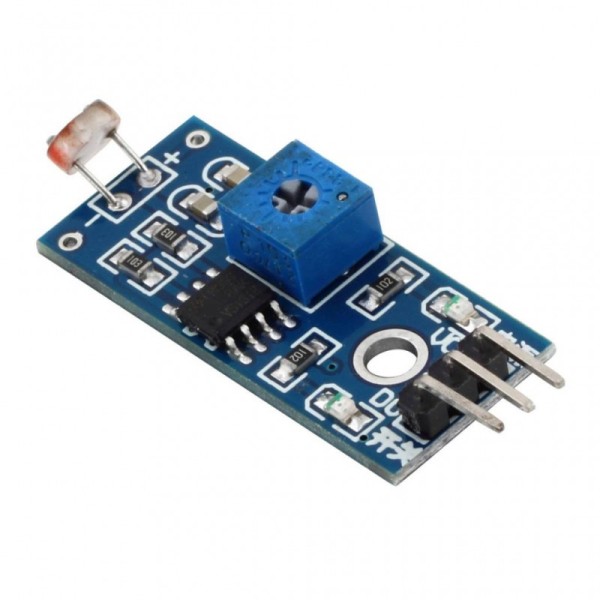

LDR Sensor Module
Features:
- Can detect ambient brightness and light intensity
- Adjustable sensitivity (via blue digital potentiometer adjustment)
- Operating voltage 3.3V-5V
Output Type:
- Analog voltage output -A0
- Digital switching outputs (0 and 1) -D0
- With fixed bolt hole for easy installation
- Small board PCB size: 3cm * 1.6cm
- Power indicator (red) and the digital switch output indicator (green)
- Using LM393 comparator chip, stable
Pin outs:
- External 3.3V-5V VCC
- External GND GND
- DO digital output interface, a small plate (0 and 1)
- AO small board analog output interface
