Product details

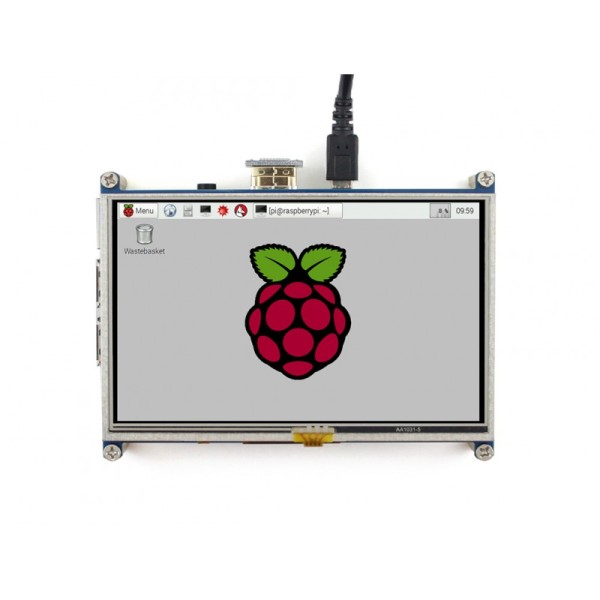

The 5 Inch Touch Screen HDMI Interface TFT LCD Module is a good solution for those who are seeking for a bigger resolution display.
This TFT LCD Display for Raspberry Pi has 5″ size which features 800×480 pixel resolution. Getting the Pi onto the display board is easy enough!!! make use of stand-off screws included in this pack to put the Raspberry Pi on the display board. But while you do this please ensure that the HDMI ports of both the Display and the Pi would line up with each other so that you will take advantage of HDMI connector that we are providing in this product pack.
This 5 Inch Touch Screen HDMI Interface TFT LCD Module is a mini panel-mountable HDMI monitor. Small and simple, yet you can use this display with any computer that has HDMI output, and the shape makes it easy to attach to an electronic product.

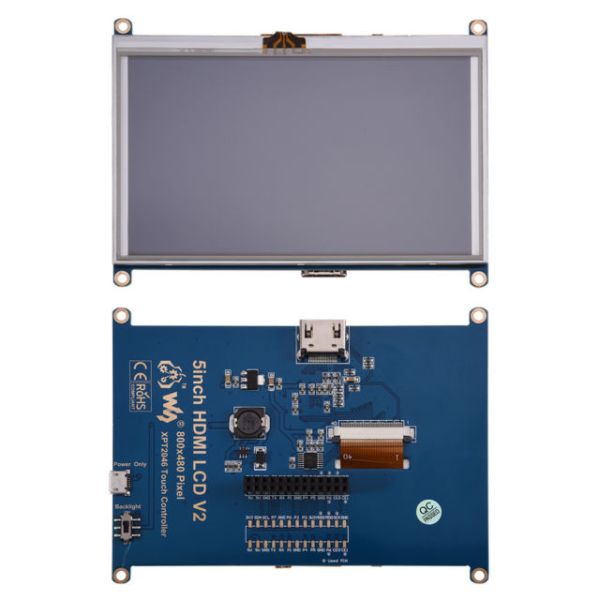

It features efficient operation by equipping Backlight Power switch with which you can control the backlight whether to be on and off to save power. It has 13×2 Pin Socket from where one can get 5V Power from raspberry Pi to LCD and at the same time, transfer touch signal back to Raspberry Pi. It also features extended interface which is the replica of 13×2 Pin Socket.
Although the 800×480 common HDMI display is made for Raspberry Pi, you can use it on other compatible boards too.
- Very easy to install and use, compatible and compact size for Raspberry pi
- Very easy to setup software and drivers for Raspberry pi
- 800 × 480 HD resolution, support for touch control
- Compatible and plugs directly into any version of Raspberry Pi (Raspberry Pi generation B-type need to reprovision the HDMI cable), no need cable for B+ , A+ and R2
- Can also be used for Cubieboard, Marsboard which has HDMI interface.
- Provide drive (which can be directly used to customize the Raspbian system)
- Universal HDMI display is not limited to Raspberry Pi (with resolution requirements)
- For display only, does not occupy any I / O resources (using the touch function, take I / O)
- The backlight control, better power saving
- Immersion Gold process, crafted

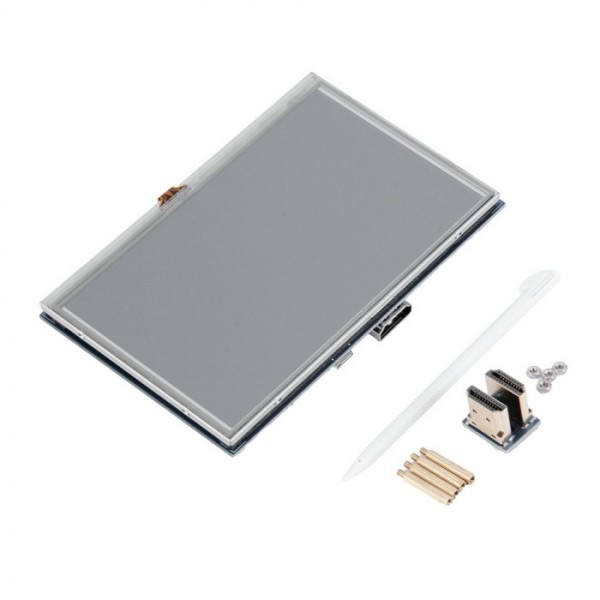

Package Included:
1 x 5″ TFT LCD HDMI Raspberry
1 x HDMI Cable
1 x USB Cable
