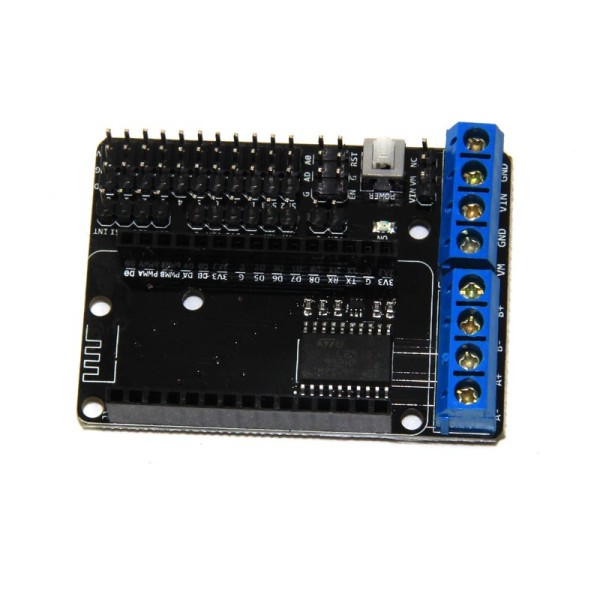

L293D Motor Drive Shield Module For NodeMcu Lua board

L293D Motor Drive Shield Module For NodeMcu Lua board is based on the first motor-driven expansion board ESP-12E development.

Features:

• Name: ESP-12E motor shield
• Using ESP-12 DEV KIT development shield module
• Extend the output ports for ESP-12 DEVKIT: SPI, UART, GPIO, AI and 3.3V power interface
• Extend 2-ways motor, then can directly drive 2-ways motor
• Design a power switch
• Driven chip: L293D
• Voltage for motor: 4.5V-36V
• Voltage for ESP control board: 4.5V-9V
• Disparate the power of ESP board and motor for avoiding the interference. In our experiments, for convenience, a shortcut module is used to connect VIN and VM for the power of ESP board and motor.

Package Includes:

• 1 x L293D Motor Drive Shield Module For NodeMcu Lua board
