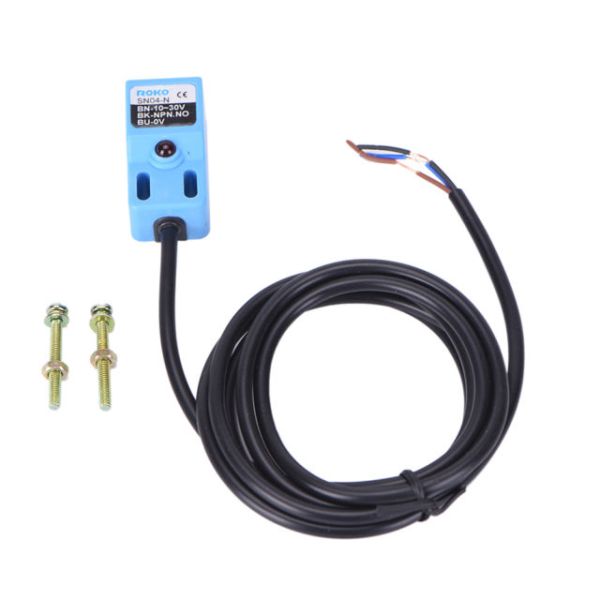

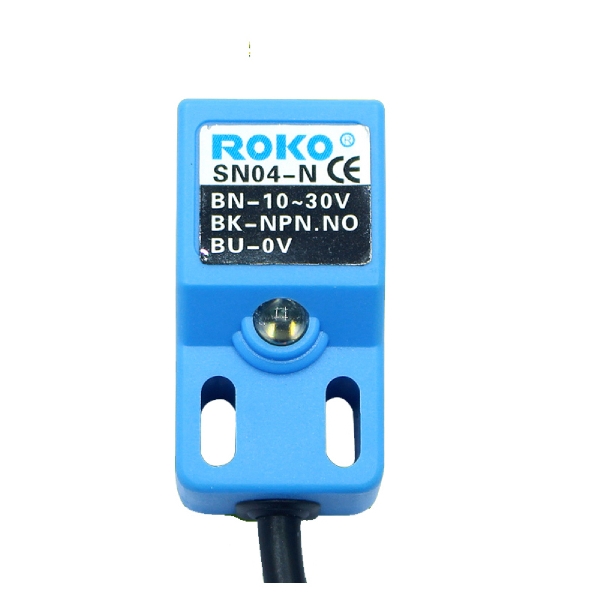

Inductive Proximity Sensor – Magnetic Switch SN04-N

This Inductive Proximity Sensor – Magnetic Switch SN04-N  NPN NO 4mm Distance Detector Proximity Sensor Switch Module will detect the presence of a metallic object within 4mm of the surface of the sensor. The detection distance may vary slightly depending on the shape, size, and type of metal the object is made of. It can detect through thin, non-metallic materials and has an LED indicator that turns on when the device is powered and increases in brightness when an object is detected.

SPECIFICATIONS:

• Detecting Distance: Max 5mm
• Sensor Type: Proximity (Inductive)
• Sensor Output Switch Type: Normally Open
• Supply Voltage Min: 10VDC
• Supply Voltage Max: 30VDC
• Current Consumption: Max 5mA
• Response Frequency: 500Hz
• Wire Type: DC 3 Wire Type (Brown, Black, Blue)
• Theory: Inductance Sensor
• Output Type: NPN, NO
• Output Switching: Transducer
• Cable Length: 1 meter
• Material: ABS Plastic
• Operating Indicator: Red LED
• IP Rating: IP67
• Operating Temperature Min: -25 °C
• Operating Temperature Max: 75 °C

Package Includes:

1 x Inductive Proximity Sensor – Magnetic Switch SN04-N
