Product details

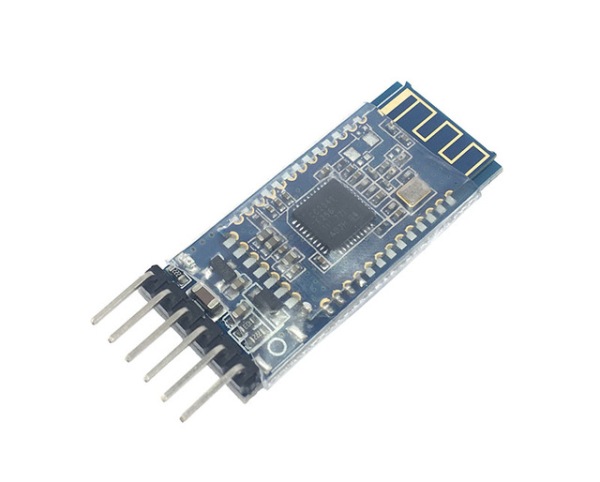

The HM 10 BLE 4.0 Bluetooth Module combines the powerful and programmable Texas Instruments CC2541 Chipset with the required components to start right away with your BLE development.The module offers an on-board voltage regulator and is TTL-level and 5 V tolerant.
The HM 10 BLE 4.0 Bluetooth Module SoC can be accessed via UART interface and supports AT-Commands for setup. It supports full Bluetooth 4.0 standard and can be used for your Arduino or microcontroller to Android or iOS communication projects.This module can be used to replace HC-05, HC-06 and HC-07 devices.This module can also be configured and used as an iBeacon for used with Apple devices.
Features :
- +2.5v to +3.3v
- Requires up to 50 mA
- Uses around 9mA when in an active state
- Use 50-200uA when asleep
- RF power: -23dbm, -6dbm, 0dbm, 6dbm
- Bluetooth version 4.0 BLE
- Default baud rate for the serial connection is 9600
- Default PIN is 000000
- Default name is HMSoft
- Based on the CC2540 or the CC2541 chip
