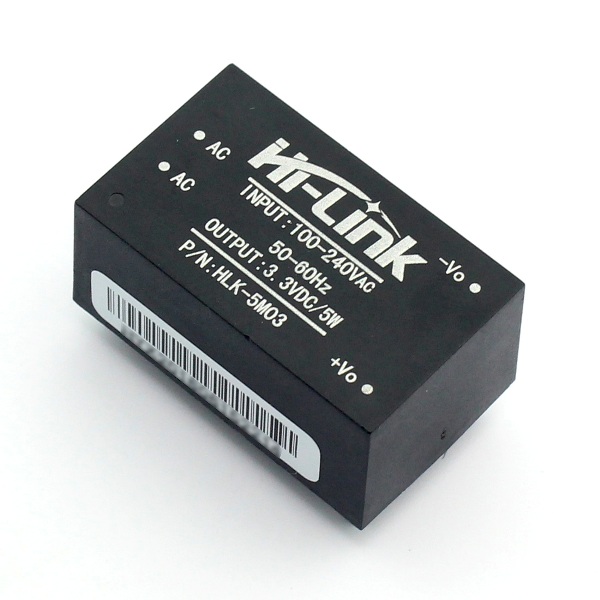

HLK-5M03 220V To 3.3V 5W AC – DC Isolation Switching Power Supply Module

HLK-5M03 220V To 3.3V 5W AC – DC Isolation Switching Power Supply Module

HLK-5M03 from Hi Link is a isolated power supply module with input range of 100 volt to 240 volt AC and output of DC 3.3 volt and power rating of 5 watt. Its ultra compact size makes it perfect to use in places where size is a constraint. It is a compact PCB mountable plastic enclosed power supply module. HLK-5M03 Power Supply Module replaces lots of parts from the traditional power supply like diodes, voltage regulator, transformer.

FEATURES:

• Meet UL, CE requirements,
• Ultra-thin, ultra-small
• All voltage input (AC: 90 ~ 264V)
• Low ripple and low noise
• Output overload and short circuit protection
• High efficiency, high power density
• The product is designed to meet the requirements of EMC and Safety Test
• Low power consumption, environmental protection, no-load loss <0.1W
• Operation Temperature -20—+60 ?
• Store Temperature -40—+80 ?
• Relative humidity 5—95 %
• Cooling way by radiation
• Atmospheric pressure 80—106 Kpa
• Sea level elevation =2000 m
• Rated input voltage 100-240 VAc
• Input voltage range 90-264 VAc

Package Includes :

1 x HLK-5M03 220V  3.3V 5W AC – DC Isolation Switching Power Supply Module
