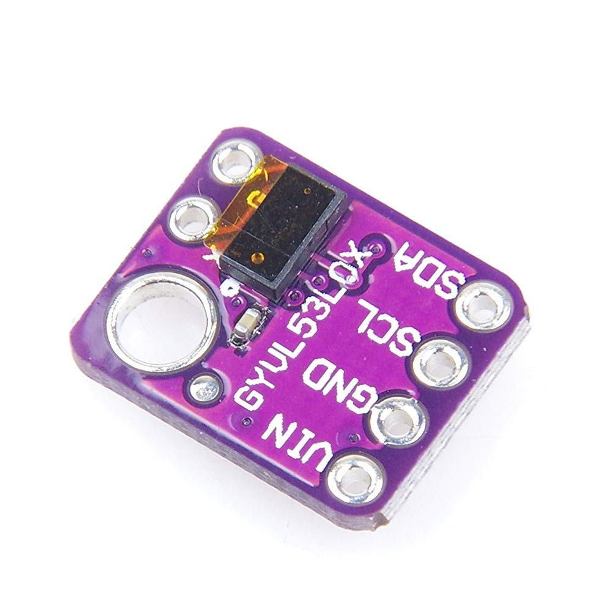

GY-530 VL53LOX Laser Rangefinder Sensor Module Time-of-Flight (TOF)

GY-530 VL53LOX Laser Rangefinder Sensor Module Time-of-Flight (ToF) Ranging Flying Time Ranging Sensor Module

Product description:

• Fully integrated miniature module;
• 940nm Laser VCSEL ;
• VCSEL driver
• Ranging sensor with advanced embedded micro controller
• 4.4 x 2.4 x 1.0mm

Fast, accurate distance ranging：

• Measures absolute range up to 2m
• Reported range is independent of the target reflectance
• Operates in high infrared ambient light levels
• Advanced embedded optical cross-talk compensation to simplify cover glass selection

Eye safe：

• Class 1 laser device compliant with latest standard IEC 60825-1:2014 – 3rd edition

Easy integration：

• Single reflowable component
• No additional optics
• Single power supply
• I2C interface for device control and data transfer
• Xshutdown (Reset) and interrupt GPIO
• Programmable I2C address
• Power supply: 2.8-5V

Applications:

• User detection for Personal Computers/ Laptops/Tablets and IoT (Energy saving). Robotics (obstacle detection).
• White goods (hand detection in automatic faucets, soap dispensers etc…).
• 1D gesture recognition.
• Laser assisted Auto-Focus.

Enhances and speeds-up camera AF system performance, especially in difficult scenes (low light levels, low contrast) or fast moving video mode.

Package Includes :

• 1 x GY-530 VL53LOX Laser Rangefinder Sensor Module Time-of-Flight (TOF)
