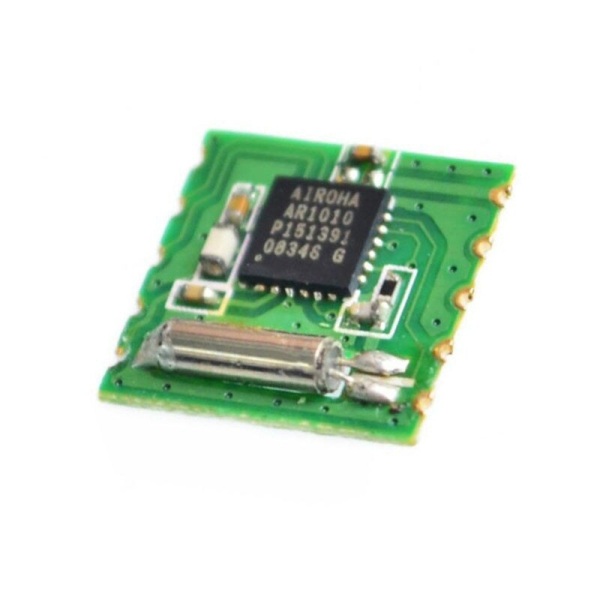

FM Radio Receiver Module AR1010 76-108MHZ Digital Broadcasting

The FM stereo receiver module based on the  AR1010 chip allows to create an  FM  radio receiver with micro controller control without spending time on the development of the high-frequency part of the circuit. Chip AR1010 is an analogue of TEA5767 used in many portable media players.It uses a simple command set over an I2C or SPI interface. Crystal and supporting components are all on board, all you need to attach is an antenna. AR1010 radio module is a direct replacement for the full version TEA5767 support digital broadcasting systems Automation Kits.

Features:

• World Channel, the frequency range from 76-108MHZ automatic digital tuning.
• High sensitivity, high stability, low noise, low power consumption.
• Radio modules, ultra-small size.
• High sensitivity with integrated low-noise RF input amplifier.
• Built in 32.768khz clock crystal.

Specifications:

• 3.3V @ 11mA
• 76-108MHz supported
• 100mV audio output
• Stereo output

Applications:

• Radio modules are widely used in consumer electronic audio-visual products,home appliances and so on. For example, MP3 PLAYER, MD,CD/MP3, PLAYER, PORTABLE VCD / DVD, MOBILE PHONE, PDA,electronic dictionary, digital refrigerator, car audio.
• Suitable for handheld application.

Package Included:

• 1 x AR1010 FM Radio Receiver Module
