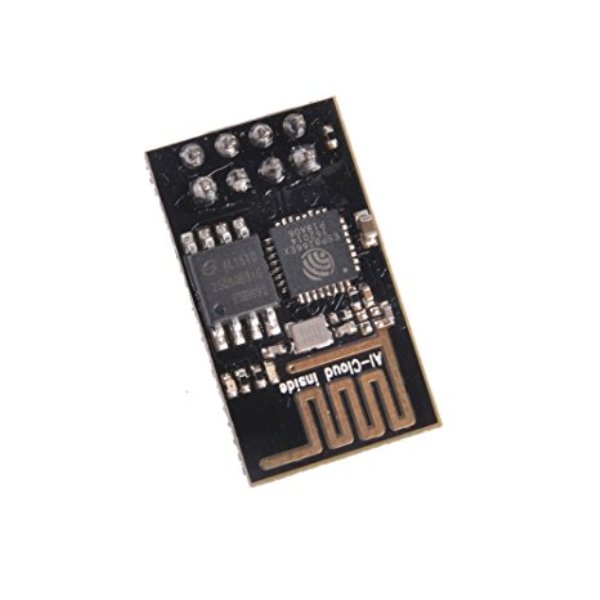

ESP8266-1 WIFI Module

The ESP8266-1 WiFi Module is a self contained SOC with integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network.

• 802.11 b/g/n protocol
• Wi-Fi Direct (P2P), soft-AP
• Integrated TCP/IP protocol stack
• Integrated TR switch, balun, LNA, power amplifier and matching network
• Integrated PLL, regulators, and power management units
• +19.5dBm output power in 802.11b mode
• Integrated temperature sensor
• Supports antenna diversity
• Power down leakage current of < 10uA
• Integrated low power 32-bit CPU could be used as application processor
• Wake up and transmit packets in < 2ms
• Standby power consumption of < 1.0mW (DTIM3)
