Product details

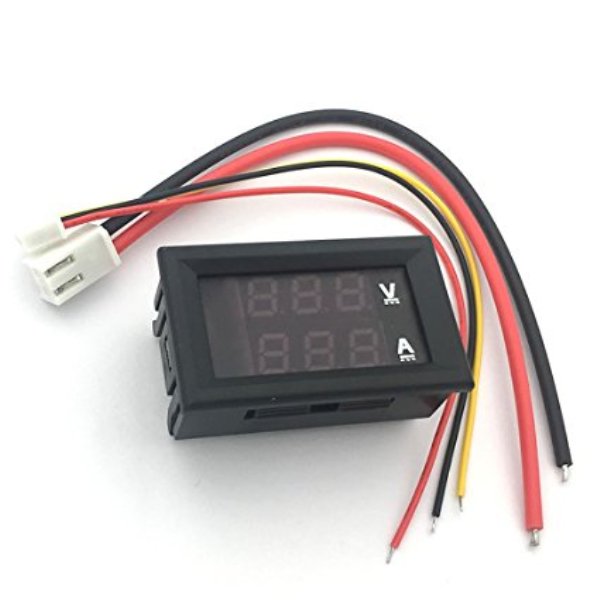

Digital Voltmeter & Ammeter DC 0-100V 10A Panel Mount is 0.28″ 5 Wires Red Led Digital Dual DC 100V 10A Ammeter Voltmeter. This meter will measure up to 100 VDC with 0.1-volt resolution.
One thing to note is, this meter has 2 wiring harnesses. One harness is to provide power for the meters, that’s the 2 poles with a RED and a BLACK lead. Small size, portable, the magnitudes of voltage and current are displayed on the same screen at the same time.
This can be supplied anywhere from 6 volts DC up to 30 VDC. This is a separate power supply that is isolated from the source, it is possible to use the same supply but it seems to affect the amp meter reading. The 3 wire harness is used for a ground which connects directly to the battery or supply ground of the load.
Features :
-
Working voltage:4.5-30V DC
-
Note: The maximum input voltage can not exceed 30V, otherwise there is the danger of burning
-
Working current:≤20mA
-
Display: 0.28″ Two color blue and red
-
Measuring range: DC 0-100V 0-10A
-
Minimum resolution (V): 0.1V
-
Refresh rate: ≥100mS / times
-
Measure accuracy: 1% (± 1 digit)
-
Minimum resolution (A): 0.01A
-
Operating temperature: -15 to 70° c
Package Includes :
- 1 x Digital Voltmeter & Ammeter DC 0-100V 10A Panel Mount
