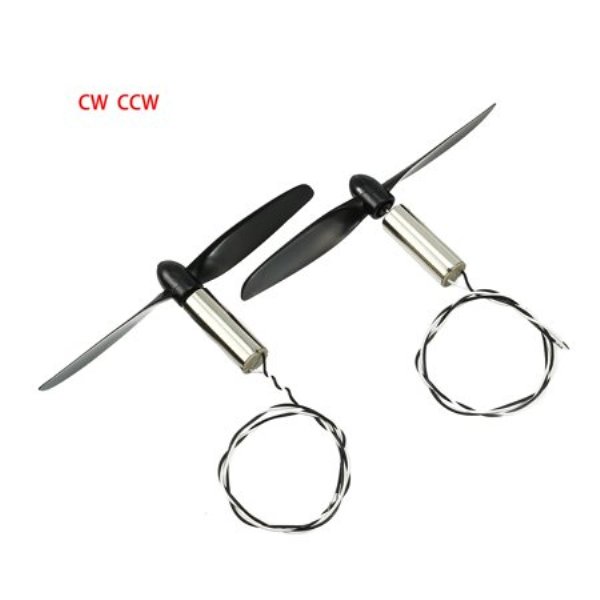

Coreless Motor 7 mm X 20 mm With Propeller Pair

Coreless Motor 7 mm X 20 mm With Propeller Pair is suitable for micro four axis aircraft,miniature glider and quad-copter
Installation Guide:
– Before getting started, you need Screwdriver, Cutting pliers, Soldering iron, Voltmeter, Tin resin for soldering, spare parts to replace the faulty components, and your patience of course.
– Always disconnect the battery to prevent any short-circuit. Removed all the faulty parts and carefully replaced them with the new ones.

• Wire length: 8 inches; Propeller Dimension: 2.95 x 0.4 inches (L x W)
• Shaft Dimension: 0.04 x 0.2 inch (DxL); Motor Dimension: 0.3 x 0.8 inches (D x L)
• Support Clockwise and Counter Clockwise Motor for micro RC Quad-copter FPV DIY
• Notice: Please ensure you had removed the insulation paint around the wire before solder ESC cable to get a shorter motor wire.
• Product Name: Helicopter Propeller w Motor

Specifications:

Voltage: DC 3.7 V
No-load Speed: 45000 RPM
Shaft Length: 5 mm/ 0.2 in
Shaft Diameter: 1 mm/ 0.04 in
Motor Size: 7 mm x 20 mm/ 0.28 in x 0.79 in (D*L)
Propeller Size: 75 mm x 11 mm/ 2.95 in x 0.43 in (L*W)
Wire Length: 20 cm/ 7.87 in
Main Color: Silver Tone, Black
Material: Metal, Plastic
Weight: 9g

Package Content:
1 x Coreless Motor 7 mm X 20 mm With Propeller Pair
