Capacitive Touch Dimmer LED Dimmer PWM Control Switch Module

Capacitive Touch Dimmer PWM Control Switch Module

The default function of the capacitor touch dimmer is a switch, dimming, with brightness memories LED touch dimming. It will light slowly when turning on the lights, and become dark slowly when turn off, which effectively avoid the stimulation to eyes.

The lamp brightness can be adjusted by requirement, it is very to operate. It can touch in medium protection, such as glass, acrylic, plastic, ceramics and so on, which is very safe.

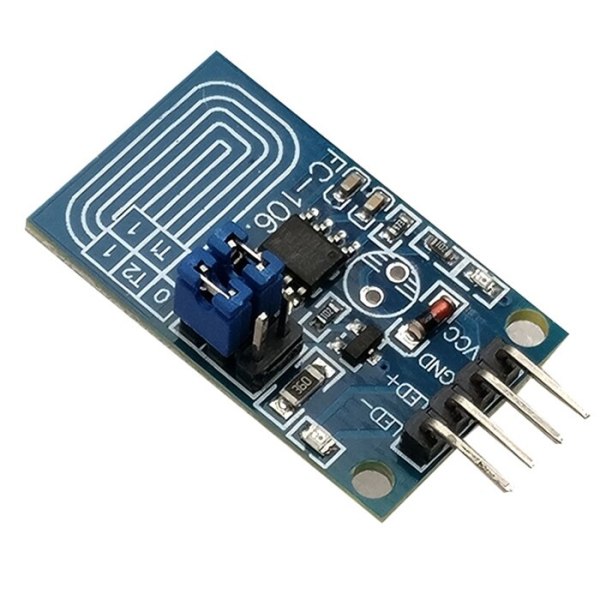

PCB board(VCC,GND) is power input

• (LED+, LED-) is connected with the LED lamps of positive and negative level (fingerprint) touch area
• Copper skin area should be 2x3cm.
• T1=1, T2=1: Without brightness memory, suddenly light and off LED touch Stepless dimming function.
• T1=0, T2=1: Without brightness memory, gradually light and off LED touch Stepless dimming function.
• T1=1, T2=0: With brightness memory, gradually light and off LED touch Stepless dimming function.
• T1=0,T2=0:LED three sections touch dimmer function.

Using method

1. Click touch (touch duration time is less than 550ms) can control the lamp. Click once, the lamp lights; click again, the lamp off. The initial brightness of lights lit the fixed for the whole brightness of 90%.
2. Press the touch at a long time (touch duration time is more than 550ms), you can achieve step-less dimming the lights. Press long time once, light levels gradually increase light levels when released after the release time parked in the corresponding brightness, long time if more than three seconds, the light levels to achieve maximum brightness does not change; again long press touch, light levels gradually decreased to stop when you release the light levels in the corresponding brightness release time, if a long time more than three seconds, the light levels after reaching the minimum brightness does not change.

Package Includes:

• 1 x Capacitive Touch Dimmer LED Dimmer PWM Control Switch Module
