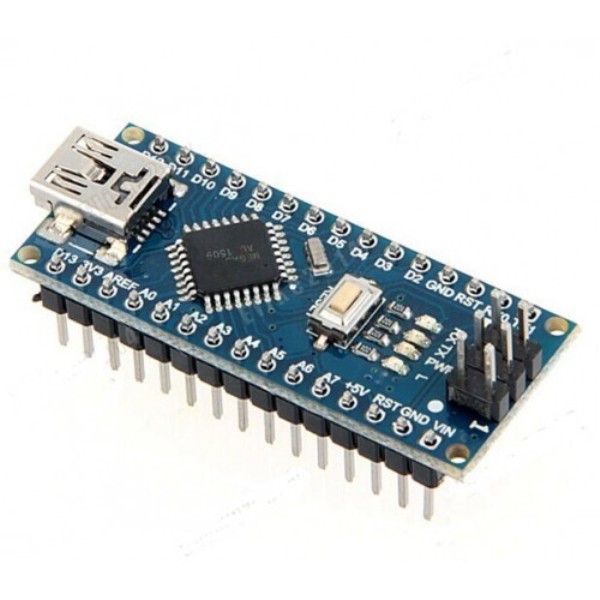

Name: Arduino Nano Board R3 With CH340 Chip Soldered Pins
SKU: 1924
Availability: InStock

Product details

The Arduino Nano Board R3 With CH340 Chip Soldered Pins is based on famous Arduino platform and does all the functions of Arduino Uno, but with a smaller footprint. Arduino Nano Board R3 with CH340 chip W/O USB Cable is vital for your small project where you don’t need much of a pin-outs but the small size is very important to make it look good.

Arduino Nano Board R3 with CH340 chip has a lower cost USB-Serial Chip that makes it less in price than Arduino Nano with FTDI USB-Serial Chip used on older versions of Arduino Nano.

The Arduino Nano Board R3 With CH340 Chip Soldered Pins is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano R3). It has more or less the same functionality of the Arduino Duemilanove but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

Note:- CH340 chip might not work directly with some PC/Laptop, you will need some ch340 drivers.

Specifications and Features :

Microcontroller :	ATmega328
Architecture:	AVR
Operating Voltage:	5 V
Flash Memory	32 KB of which 2 KB used by bootloader
SRAM	2 KB
Clock Speed	16 MHz
Analog I/O Pins	8
EEPROM	1 KB
DC Current per I/O Pins	40 mA (I/O Pins)
Input Voltage	7-12 V
Digital I/O Pins	22
PWM Output	6

Automatic reset during program download.
Power OK blue LED on the bottom.
Green (TX), red (RX) and orange (L) LED.
+5V to AREF jumper.
Auto sensing/switching power input.
Small mini-B USB for programming and serial monitor (cable not included).
ICSP header for direct program download.
Power OK blue LED on the bottom.
Standard 0.1” spacing DIP (breadboard friendly).
Manual reset switch.
The Arduino Nano can be power via the mini-USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically select to the highest voltage source.

Package included:
