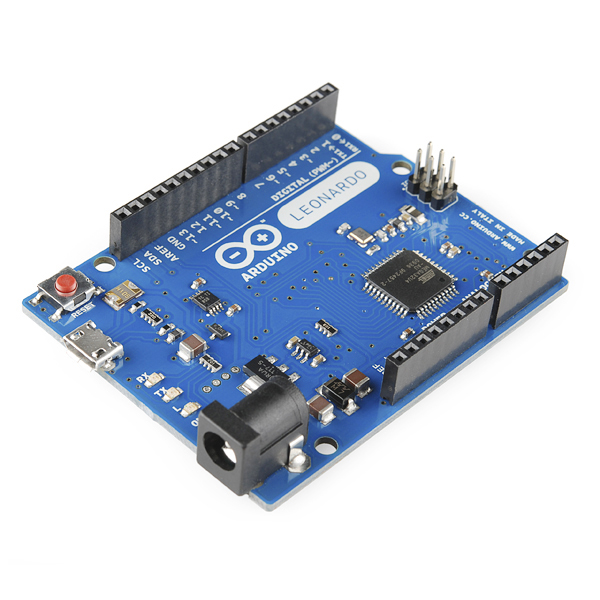

Arduino Leonardo With ATmega32u4

0 Reviews
10 in stock

708.00

Buy now

Product details

Arduino Leonardo is a microcontroller board based on the ATmega32u4 (datasheet). It has 20 digital input/output pins  is a microcontroller board based on the ATmega32u4. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

  • Microcontroller: ATmega32u4
  • Operating voltage: 5 V
  • Supply voltage (recommended): 7-12 V
  • Supply voltage (limits): 6-20 V
  • Number of digital I/O pins: 20
  • Number of PWM pins: 7
  • Number of analog input pins: 12
  • Max DC current for each I/O pins: 40 mA
  • DC current for 3.3 V out: 50 mA
  • Max DC current for 3.3 V pin: 1 A (if supplied with an external adapter)
  • Flash memory: 32 kB (ATmega32u4, 4 kB is used by bootloader)
  • SRAM: 2.5 kB (ATmega32u4)
  • EEPROM: 1kB (ATmega32u4)
  • Clock speed: 16 MHz



Package includes:

  • 1 x Arduino Leonardo With ATmega32u4
