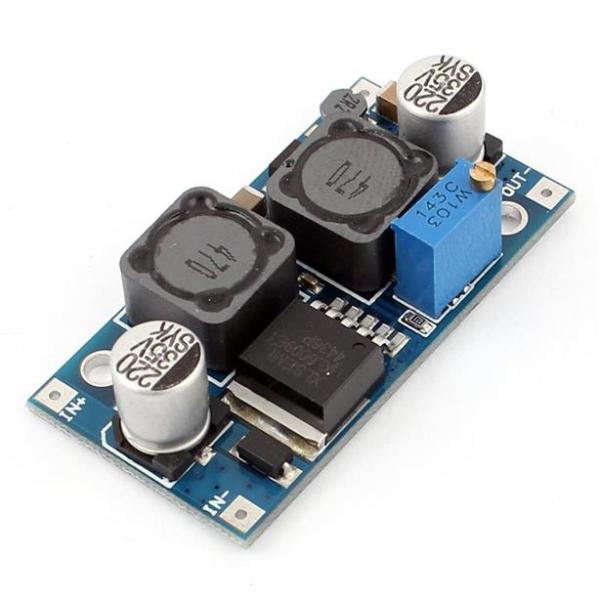

DC to DC Adjustable Step Up Boost Power Converter Module XL6009

DC to DC Adjustable Step Up Boost Power Converter Module XL6009

XL6009 module is a non-isolated step-up boost voltage converter featuring adjustable output voltage, high efficiency. It converts input voltage of 5-32V DC to an output voltage of 4-38V DC.

• Module Type: DC-DC Step-Down / Step-Up Module (non-isolated)
• Input Voltage: 3.8V – 32V
• Output Voltage: 1.25V – 35V
• Output Current: 3A (max)
• No Load Current: 18mA @ Input(5V); Output(8V)
• Conversion Efficiency: 94%
• Switching Frequency: 400kHz
• Output Ripple: 50mV (The higher the voltage , the greater the current , the greater the ripple)
• Load Regulation: ± 0.5%
• Voltage Regulation: ± 0.5%
