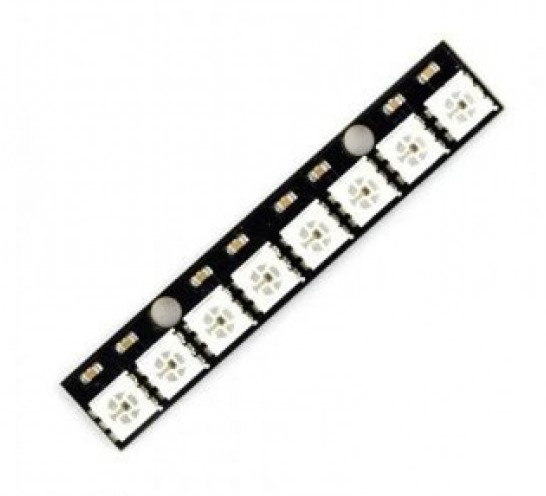

8 Bit WS2812 RGB LED Straight Development Board

The 8Bit WS2812 5050 RGB LED Built-in Full Color Driving Lights Circular Development Board has round black shape, let us be clear at a glance! 8 super bright smart Neo Pixels LED arranged in a 28mm outside diameter straight PCB.

This WS2812 RGB LED straight is a small, circular ring of addressable RGB LEDs. To use them, simply wire to the back of the board pictured above (there are some solder pads available, labelled for data and power) and code it using an appropriate library.

Features :

• The control circuit and the LED share the only power source.
• Control circuit and RGB chip are integrated into a package of 5050 components, form a complete control of pixel point.
• Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion not accumulate.
• Built-in electric reset circuit and power lost reset circuit.
• Each pixel of the three primary colors can achieve 256 brightness levels, or 16M colors full-color display, and scan frequency not less than 400Hz/s.
• Cascading port transmission signal by a single line.
• Any two points the distance more than 5m transmission signal without any increase circuit.
• When the refresh rate is 30fps, cascade number is not less than 1024 points.
• Send data at speeds of 800Kbps.
• The color of the light was highly consistent
• Full-color module, Full-color soft lights a lamp strip.
• LED decorative lighting, Indoor/outdoor LED video irregular screen.

Package Includes :

• 1 x WS2812 RGB LED straight Development Board
