Product details

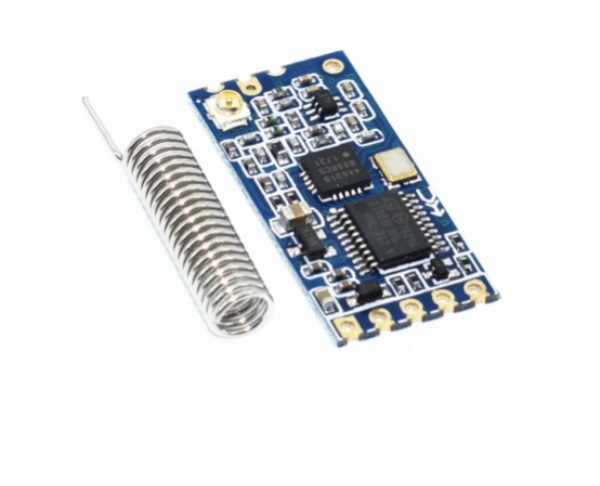

433Mhz HC-12 Wireless Serial Port Module- Wireless Transceiver Module – SI4463 Radio Chip Based – Approx 1 Km Range in Open area – TTL Serial Interface
Based on SI4463 EZRadioPro family chip by SiLabs. This 433Mhz HC-12 Wireless Module offers a wireless data transmission and reception range of approximately 1 Km in open air. It’s a low power radio chip which is ultra easy to use. This module has an on board STM8S003F3P6 MCU which is communicating with the SI4463 so that the user can communicate with the module using a simple TTL 2 wire serial interface (RX, TX, GND).
- IEEE 802.15.4g compliant
- Frequency range = 119–1050 MHz
- Receive sensitivity = –126 dBm
- Serial TTL (RX, TX, GND) interface
- Modulation (G)FSK, 4(G)FSK, (G)MSK, OOK
- Max output power +20 dBm
- Low active power consumption 10/13 mA RX, 18 mA TX at +10 dBm
- Ultra low current power down modes 30 nA shutdown, 50 nA standby
- Data rate = 100 bps to 1 Mbps
- Fast wake and hop times
- Highly configurable packet handler
- TX and RX 64 byte FIFOs
- Auto frequency control (AFC)
- Automatic gain control (AGC)
- Low BOM
- Low battery detector
- FCC Part 90 Mask D, FCC part 15.247, 15,231, 15,249, ARIB T-108, T-96, T-67, RCR STD-30, China regulatory
- ETSI Class-I Operation with SAW
Package Includes:
1 x 433Mhz HC-12 Wireless Serial Port Module
