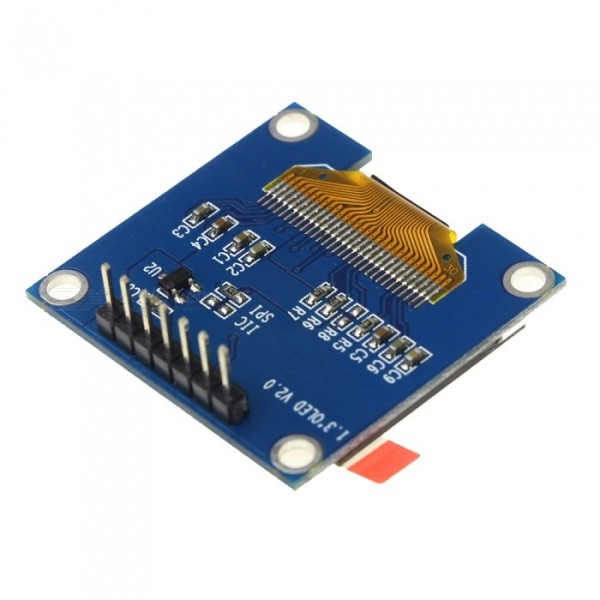

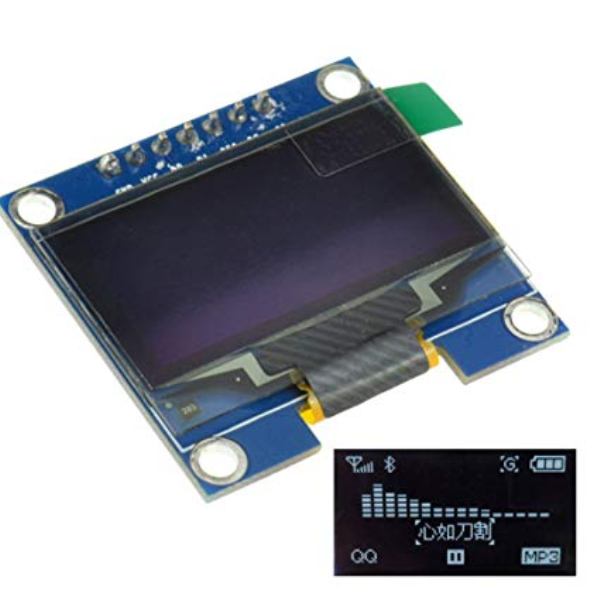

1.3 Inch 128×64 OLED Display Module with SPI Serial Interface-7 Pin

1.3 Inch 128×64 OLED Display Module with SPI Serial Interface-7 Pin

OLED’s are the future of displays, as they possess some of the greatest advantages over both conventional display technologies of LCD’s and LED‘s.

The most attractive thing about using the OLED displays is that they do not need a back-light like conventional LCD/LED screens. The organic material itself has a property known as Electroluminescence (EL), which causes the material to “glow” when stimulated by a current or an electric field. Best energy saving displays ever!!!

This 1.3 Inch 128×64 OLED Display Screen Module offers 128×64 pixel resolution. They are featuring much less thickness than LCD displays with good brightness and also produce better and true colors.

This OLED Display Module is very compact and will add a great ever user interface experience to your Arduino project. The connection of this display with Arduino is made through SPI interface.

The 1.3 Inch 128×64 OLED Display Screen Module produces blue text on black background with very good contrast when supplied with DC 2.8V supply. The OLED Display Modules also offers a very wide viewing angle of about greater than 160°.

Features :-

• Doesn’t need backlight the display unit can self-luminous
• high resolution:128*64
• viewing angle:>160
• OLED screens inside the driver chips : SSH1106
• supports many control chip : fully compatible with Arduino 51 series,msp430 series , stm32/2 CSR IC , ETC
• Ultra-low power consumption:full screen lit 0.08w
• voltage 3v-5vdc
• work temp : -30c-70c
• spi interface
• color : BLue/White

Pin Description :-

• GND: Power ground
• VDD:2.8-5.5V power supply
• SCK: CLK clock
• SDA: MOSI data
• RES: Reset
• DC: data / command
• CS: chip-select signal

Package Includes :

1 x 1.3 Inch 128×64 OLED Display Module with SPI Serial Interface-7 Pin
